XSim User manual
This is user manual of XSim. XSim is a web-based GUI to create analysis file for Open source CFD software OpenFOAM.
Features
- Language settings
- Importing 3D shapes
- 3D view operations
- Editing 3D shapes
- Mesh density setting
- Layer mesh settings
- Boundary condition setting
- Output flow rate and average value in specified region
- Output aerodynamic coefficients (Cd, Cl etc...) in specified region
- Output value at specified coordinate
Tutorials
-

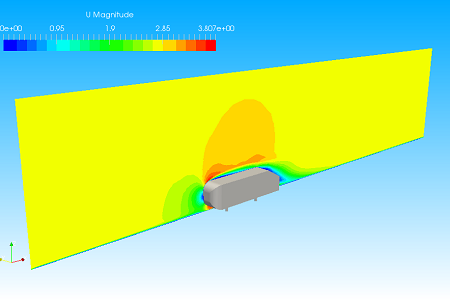

Measuring drag coefficient on simple car model -
Heat convection by a heater and measuring temperature -
Measuring outlet flow rate in branch pipe -
Calculation of axial fan with moving mesh function -
Calculation of dam break problem with multiphase function -
Calculation of inflow/outflow in a tank with a filter -
Calculation of flow in a sloping channel
